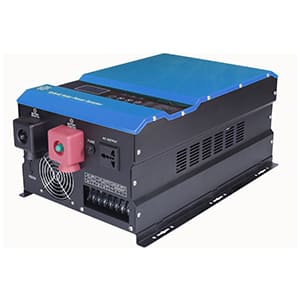

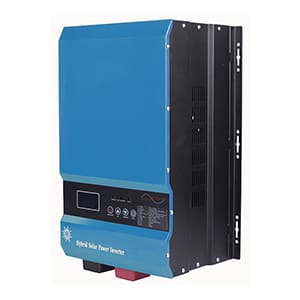

Low Frequency Hybrid Power Inverter with MPPT Controller is a pure sine wave inverter with AC charge and solar controller.
Low Frequency Hybrid Power Inverter with MPPT Controller is a pure sine wave inverter with AC charge and solar controller.
Low Frequency Hybrid Power Inverter with MPPT Controller is a pure sine wave inverter with AC charge and solar controller.
LCD display offer users-configurable and clear data.

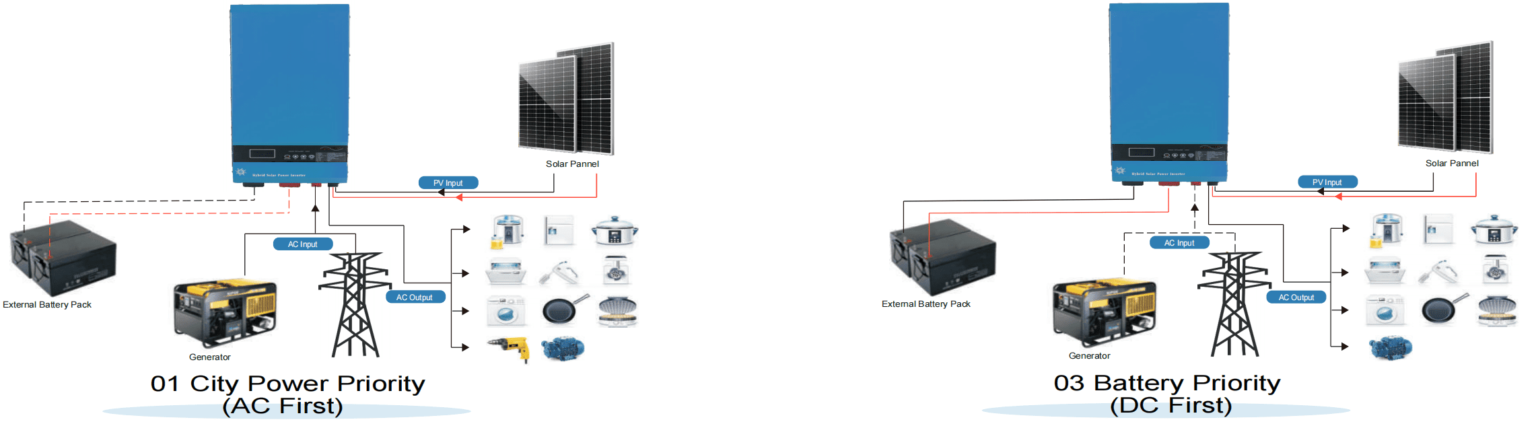

Easy-to-operate button operation such as battery or city power priority, battery voltage, load , Input and output voltage query.
This inverter can use for solar power system ,light, radio, DVD, TV set and the other house appliance.
| Rated Capacity | 10000W, 1000W, 12000W, 1500W, 2000W, 3000W, 4000W, 5000W, 6000W, 8000W |
|---|---|
| Peak Power | 12000W, 15000W, 18000W, 24000W, 30000W, 3000W, 36000W, 4500W, 6000W, 9000W |
| Commercial Power Range | 110VAC: 83V-137VAC, 120VAC: 90V-150VAC, 220VAC: 165V-275VAC, 220VAC: 176V-264VAC, 230VAC: 173V-287VAC, 230VAC: 184V-276VAC |
| AC Frequency Range | 45-65HZ |
| Efficiency | >85% |
| MPPT Solar Controller | 100A, 30A, 50A, 60A, 80A |
| Solar Input Power | 1200W, 1440W, 2400W, 2880W, 360W, 3840W, 4800W, 720W, 9600W |
| Solar Input Voltage (Max) | 12VDC: 130V, 24VDC: 130V, 48VDC: 160V, 96VDC: 280V |
| Battery Type | GEL Battery, Lead-acid Battery, Lithium Battery |
| DC Voltage | 12VDC, 24VDC, 48VDC, 96VDC |
| Input Voltage Range | 12VDC: 10.5-15VDC, 24VDC: 21-30VDC, 48VDC: 42-60VDC, 96VDC: 84-120VDC |
| Floating Charge Set | 12V: 12.9-13.6V, 24V: 25.8-27.2V, 48V: 51.6-54.4V, 96V: 103.2-108.8V |
| Low Voltage Restored | 12VDC: 12.6-14.4VDC, 24VDC: 25.2-28.8VDC, 48VDC: 50.4-57.6VDC, 96VDC:100.8-115.2VDC |
| Low Voltage Shutdown Set | 12VDC: 10-10.9V, 24VDC: 20-21.8V, 48VDC: 40-43.6V, 96VDC: 80V-87.2V |
| Over Voltage Protection | 12VDC: 16.7V, 24VDC: 33.4V, 48VDC:66.8V |
| Over Voltage Alarm | 12VDC: 15V, 24VDC: 30V, 48VDC:60V |
| AC Charging | 5A-35A (40A, 50A, 60A, 70A Optional) |
| AVR Voltage Range | 110/120/220/230/240±10% (Auto-sensing) |
| Power Factor | 100% |
| Transfer Time | Typical: 5ms (Including detection time) |
| Temperature Protection | ≥85℃ Alarm, ≥90℃ Machine Shut Off |
| Waveform | Pure Sine Wave |
| Operating Temperature | 0℃~70℃ |
| Thermal Method | Cooling Fan in Intelligent Control, ≤42℃ Fan Rotates Slowly to ≥45℃ Fan Rotates Fast |
| Dimension | 510*325*215MM, 645*325*215MM, 765*320*250MM |
| Carton Dimension | 560*380*280MM, 730*400*290MM, 840*405*320MM |
| Net Weight (kgs) | 14, 15, 18, 20, 31, 34, 35, 52, 54, 56 |
| Gross Weight (kgs) | 16, 17, 20, 22, 35, 37, 38, 56, 58, 60 |
