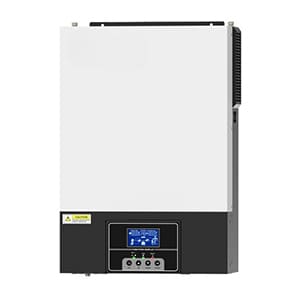

HSPS-FE High Frequency Inverter can effortlessly convert solar DC power into efficient AC energy. With a sturdy power factor of 1.0, it ensures optimal performance.
HSPS-FE High Frequency Inverter can effortlessly convert solar DC power into efficient AC energy. With a sturdy power factor of 1.0, it ensures optimal performance.
HSPS-FE High Frequency Inverter can effortlessly convert solar DC power into efficient AC energy. With a sturdy power factor of 1.0, it ensures optimal performance.
HSPS-FE High Frequency Inverter can alsp elevate your command with seamless WIFI&GPRS connectivity. What’s more, empowered by a robust 100A MPPT solar charger, it maximizes solar power engagement and its broad PV input voltage range adapts flexibly to diverse setups.
Engineered to conquer challenging environments, the inverter features an anti-dusk kit and smart battery charging enhances battery lifespan, while compatibility with lithium batteries adds versatility.
| Rated Output Power | 3500VA/3500W, 5500VA/5500W |
|---|---|
| Voltage | 230VAC |
| Selectable Voltage Range | 170~280VAC (For Personal Computers), 90~280VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz(Auto Senting) |
| AC Voltage Regulation | 230VAC±5% |
| Surge Power | 11000VA, 7000VA |
| Efficiency (Peak) PV to INV | 97% |
| Efficiency (Peak) Battery | 94% |
| Transfer Time | 10ms(For Personal Computers);20ms(For Home Appliances) |
| Battery Voltage | 24VDC, 48VDC |
| Floating Charge Voltage | 27VDC, 54VDC |
| Overcharge Protection | 33VDC, 63VDC |
| Maximum Charge Current | 80A |
| Maximum PV Array Power | 5000W, 6000W |
| MPPT Range @ Operating Voltage | 120~450VDC |
| Maximum Charging Current | 100A |
| Maximun Efficiency | 98% |
| Dimension | 100*300*440MM |
| Carton Dimension | 208*590*390MM |
| Net Weight (kgs) | 11, 12 |
| Gross Weight (kgs) | 11.5, 12.5 |
| Communication Interface | GPRS, RS232, USB, WIFI |
| Humidity | 5% to 95% Relative Humidity (Non Condensing） |
| Operating Temperature | 0~55℃ |
Solarctrl is a professional solar energy manufacturer integrating R&D, production, and export. We provide high-performance solar panels, inverters, lithium batteries, and energy storage systems for global distributors and installers.
With strong technical support, strict quality control, and fast delivery, we help our partners grow their business through reliable, affordable, and sustainable energy solutions.
